Typical Studebaker Dash Switch
Repair
Studebaker Dash switches aren't that tough to "renew". You can't
really "rebuild them" per say, but they can be "fixed." There are
several different types of switches, but the basic design is much the
same.
To Renew: Refer to the photo below:
1)
Remove the wiring and remove the switch from the dash.
2)
Remove the circuit breaker from the switch (that "box" on the side)..if
so equipped (Wipers and Headlight switches).
3) Carefully
bend 2 of the tiny metal tabs (on one side) back so they are nearly
verticle.
4) Only SLIGHTLY loosen the other 2 tabs.
***This will allow the back cover to be removed and also makes it MUCH
easier to reinstall then bending up "all" of the tabs.
5)
Carefully remove the back cover, and paper insulator(if used)- set them
aside- Get out the (cloths) IRON and pre-heat it on a low setting.
Once warm- IRON the rear cover(if possible) AND the insulator paper to
make them nice and flat again.
6) Remove the copper
contact plate(s), and spring(s)- clean it/them with electrical cleaner
and/or steel wool, or a scotch brite pad until it is clean and shiny.
7) Remove the interior components, NOTING EXACTLY how they
come apart and clean them all with electrical cleaner.
8)
Reinstall the now clean components using an electrical grease such as
the type you get with a set of distributor points.
9)
Reinstall the back cover and insulating paper and carefully bend the
tabs back down.
10) Test the switch circuits with a battery charger
and test light.

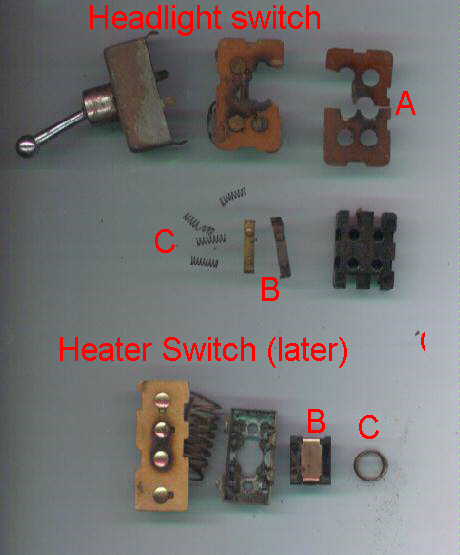

Typical switch components:
Below you will see 2 different switches in their
disassembled state. The (TOP) one is a headlight switch from a '53 or
'54. The lower one is a heater switch from a '62 GT.
It is pretty much
the same as the heater and defroster switches from '56-'62. The only
difference is the wire connections on the back and the switch handle.
|
