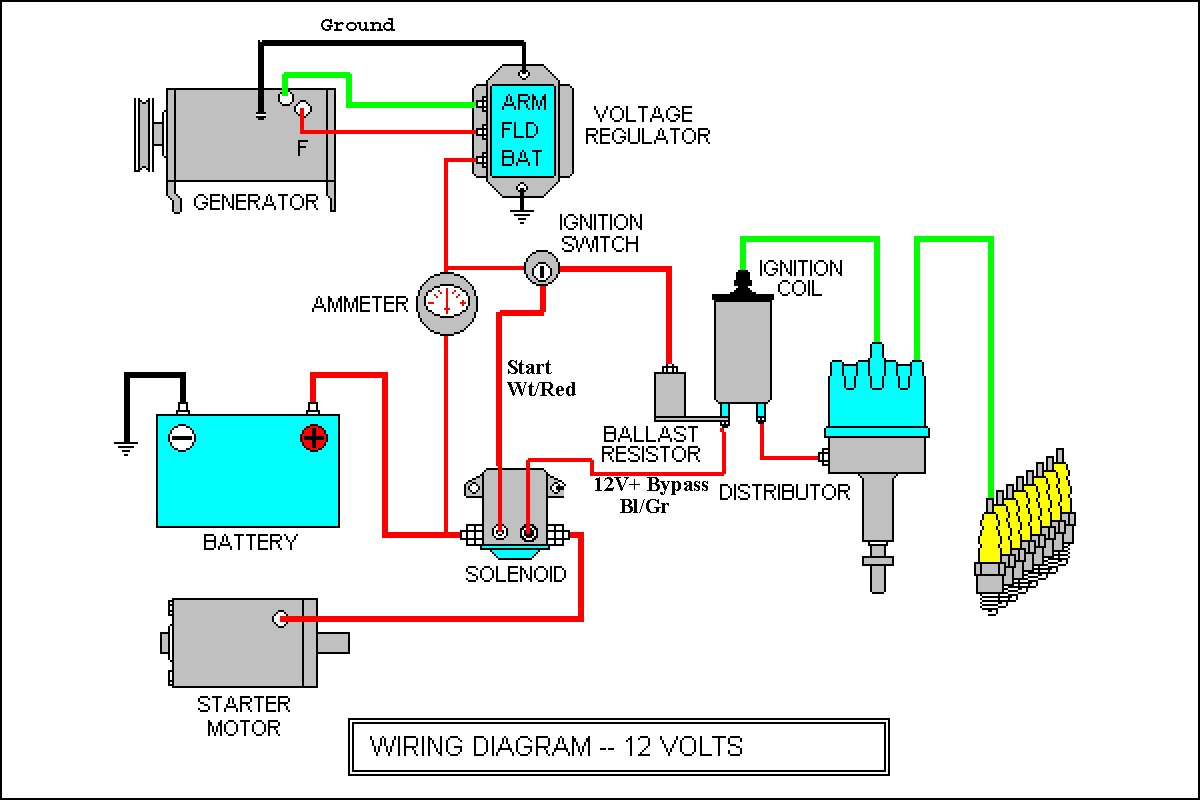

Typical Studebaker 12V Start Charging Wiring Schematic

http://raylinrestoration.com/TechnicalPages/GeneralPics/WiringDiagramB.gif
