Studebaker 3 speed with Overdrive Schematic and Troubleshooting

 Wiring Diagram, Photo, and Troubleshooting Guide

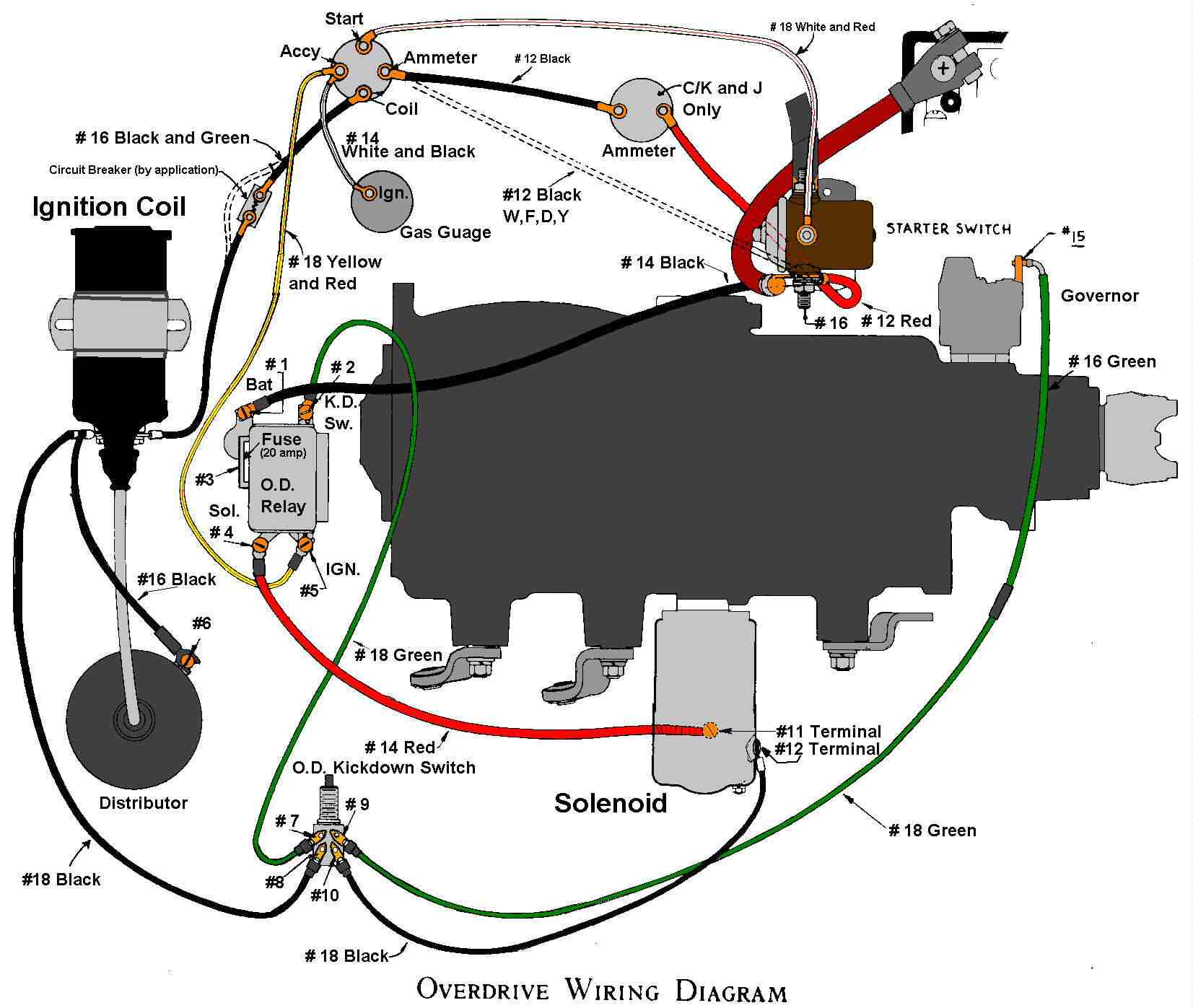

Typical 1956-1963 Overdrive Setup:



*** Click image to view full size

Overdrive Troubleshooting Guides: Problem? The following links are to "printable" .gif images. Your computer should automatically download and open the images in your default imaging program: (Photoshop, Windows Imaging, PhotoFinish...etc.)

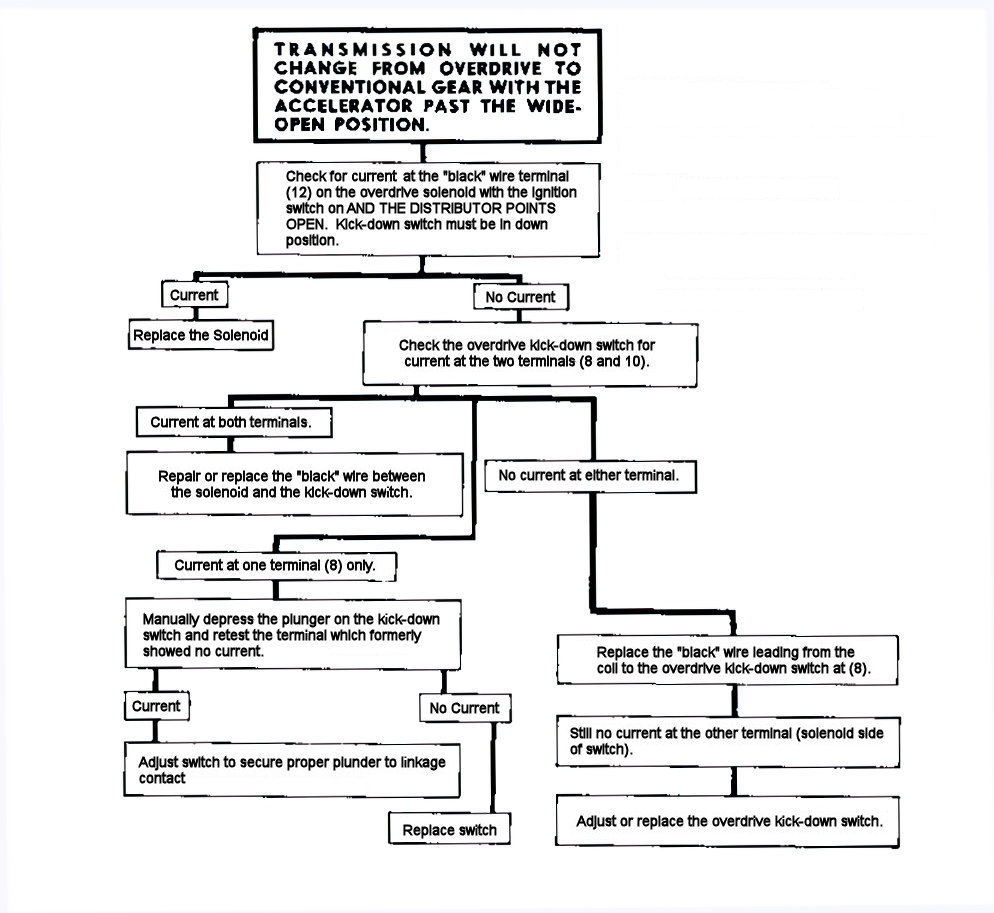

• Transmission will not change from Overdrive to Conventional gear with the accelerator past wide open position: Click Here!

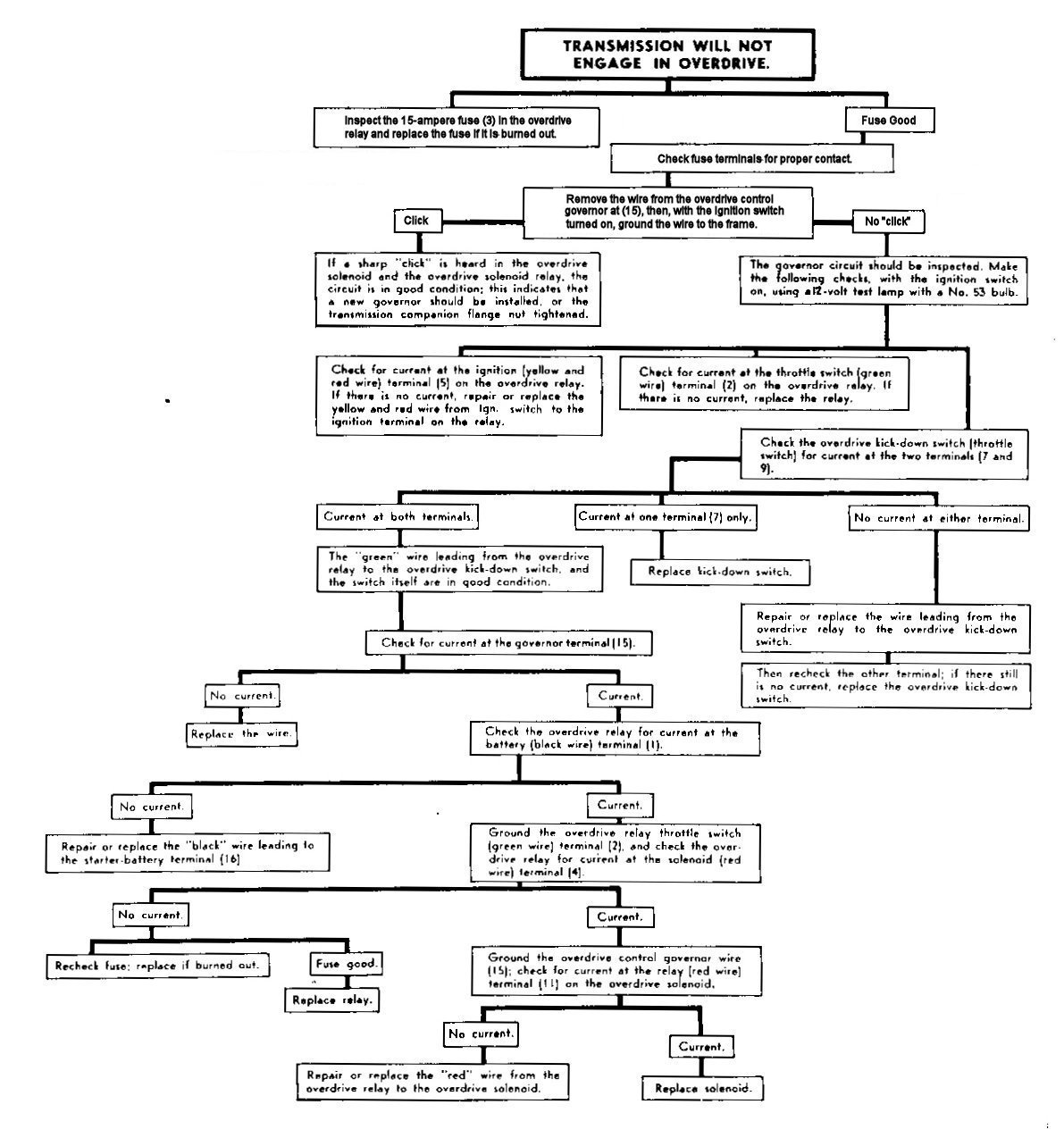

• Transmission will not engage Overdrive: Click Here!

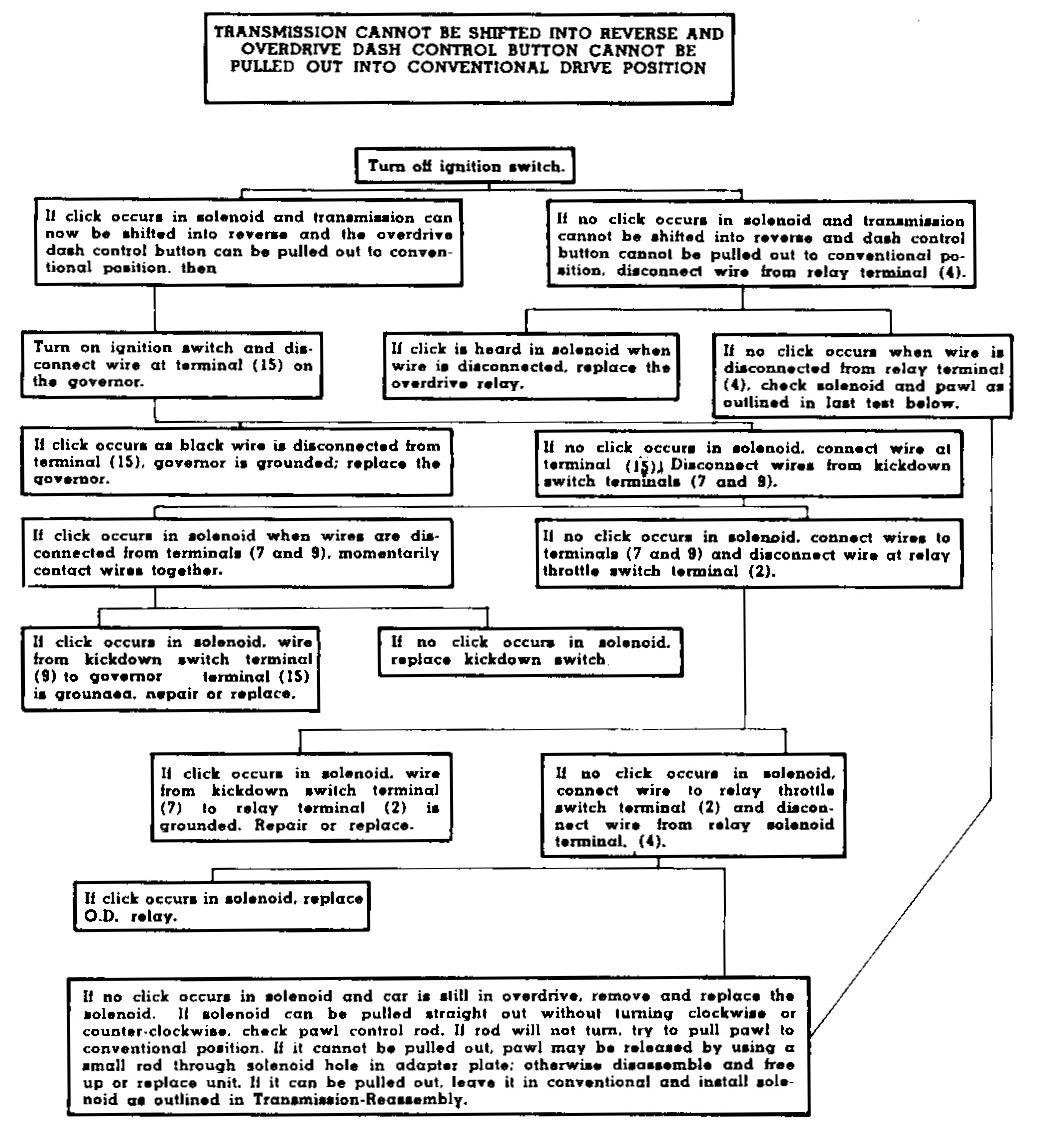

• Transmission cannot be shifted into Reverse- and Overdrive dash control button cannot be pulled out into Conventional Drive position: Click Here!

For a .pdf file of all three pages from the shop manual: Click Here!
